VPX3U-RFSoC-G3-CH8

3U VPX Data Processing Engine based on Xilinx Zynq Ultrascale+ RFSoC Gen3 integrates multi-gigasample RF data converters and soft-decision forward error correction (SD-FEC) into an SoC architecture.

Overview

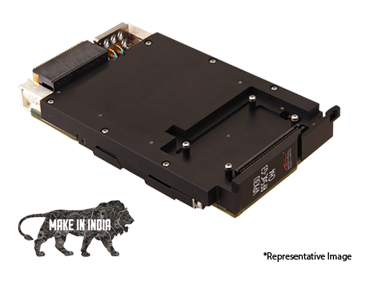

The VPX3U-RFSoC-G3-CH8 from Mistral is a 3U VITA-46 VPX-based Data Processing Engine built around the 3rd Gen transformational Zynq® Ultrascale+™ RF system-on-chip technology (RFSoC) from Xilinx®. The Zynq UltraScale+ RFSoC integrates multi-gigasample RF data converters and soft-decision forward error correction (SD-FEC) into an SoC architecture. Equipped with an ARM® Cortex®-A53 processing subsystem and UltraScale+ programmable logic, the Zynq UltraScale+ delivers the right platform for analog, digital, and embedded design, simplifying calibration and synchronization along the signal chain.

With a sampling rate reaching up to 5GSPS, the VPX3U-RFSoC-G3-CH8 presents a range of eight Transmit and Receive channels. In addition, the 3U VPX Data Processing Engine provides a dual-channel 100 Gigabit Ethernet fiber optic interface for data transfers up to 25 GB/s. This 3U-VPX based RFSOC Gen3 processing engine is available in both air and conduction-cooled variants, making it a perfect COTS product for EW, RADAR, SONAR, SIGINT, and other rugged Aerospace and Defense applications.

Specification

  • Zynq UltraScale+ RFSoC - Integrated ADC, DAC, programmable logic and processing subsystems
  • 8-channel 14-Bit ADC > >5.0GSPS
  • 8-channel 14-Bit DAC > 10.0GSPS
  • LVDS connections to RFSoC for custom I/O
  • Optional VITA-66.4 optical interface for backplane gigabit serial communication
  • Dual 100 GigE UDP interface
  • Compatible with several VITA standards
  • Air-cooled/conduction-cooled configurations
  • MIL-STD-810G for Environmental Compliance
  • MIL-STD-461E for EMI/EMC Compliance
  • Open-source Linux BSP for software development
