ANSYS SCADE Solutions for ARINC 661

Empowers you to prototype and design ARINC 661 compliant systems, embedded Cockpit Display Systems (CDS) and User Applications (UA).

Overview

Modular, model-based, certifiable and configurable, Ansys SCADE Solutions for ARINC 661 Compliant Systems decrease overall avionics software development and modifications costs. Ansys also decreases the time-to-certification and is an important step in enabling more modular certification of ARINC 661 compliant aircraft components.

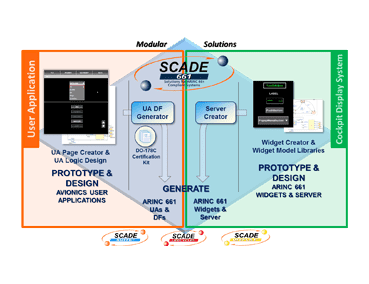

Ansys SCADE Solutions for ARINC 661 compliant systems fully adhere to the ARINC 661 standard, including the ARINC 661 Server, the User Applications (UA), standard binary and XML Definition Files (DF), and the communication code between Ansys SCADE UA models and any ARINC 661 Server. This ultimately saves time and reduces effort and cost when developing cockpit display systems.

Ansys SCADE Solutions for ARINC 661 Compliant Systems offers a comprehensive set of automated features for CDS and UA developers to maximize productivity.

FEATURES

  • Features customizable SCADE Suite and SCADE Display models for all 93 ARINC 661 standard widgets and 13 extensions of Supplement 7
  • Dedicated user interface to enables aircraft manufacturers and CDS developers to customize and develop new widgets
  • Enables aircraft manufacturers and CDS developers to automatically generate the majority of the ARINC 661 server C source code
  • Add-on that enables UA designers to prototype and design aRINC 661 UA DF pages as models
  • An automatic, DO-178 qualifiable tool that generates standard binary and XML definition Files
  • Add-on module that enables automatic ARINC-661 compaint C Communication code generation between SCADE Suite UA and any ARINC 661 server
  • Composed by a set of Python libraries that constitute the building blocks of an end-user test environment
